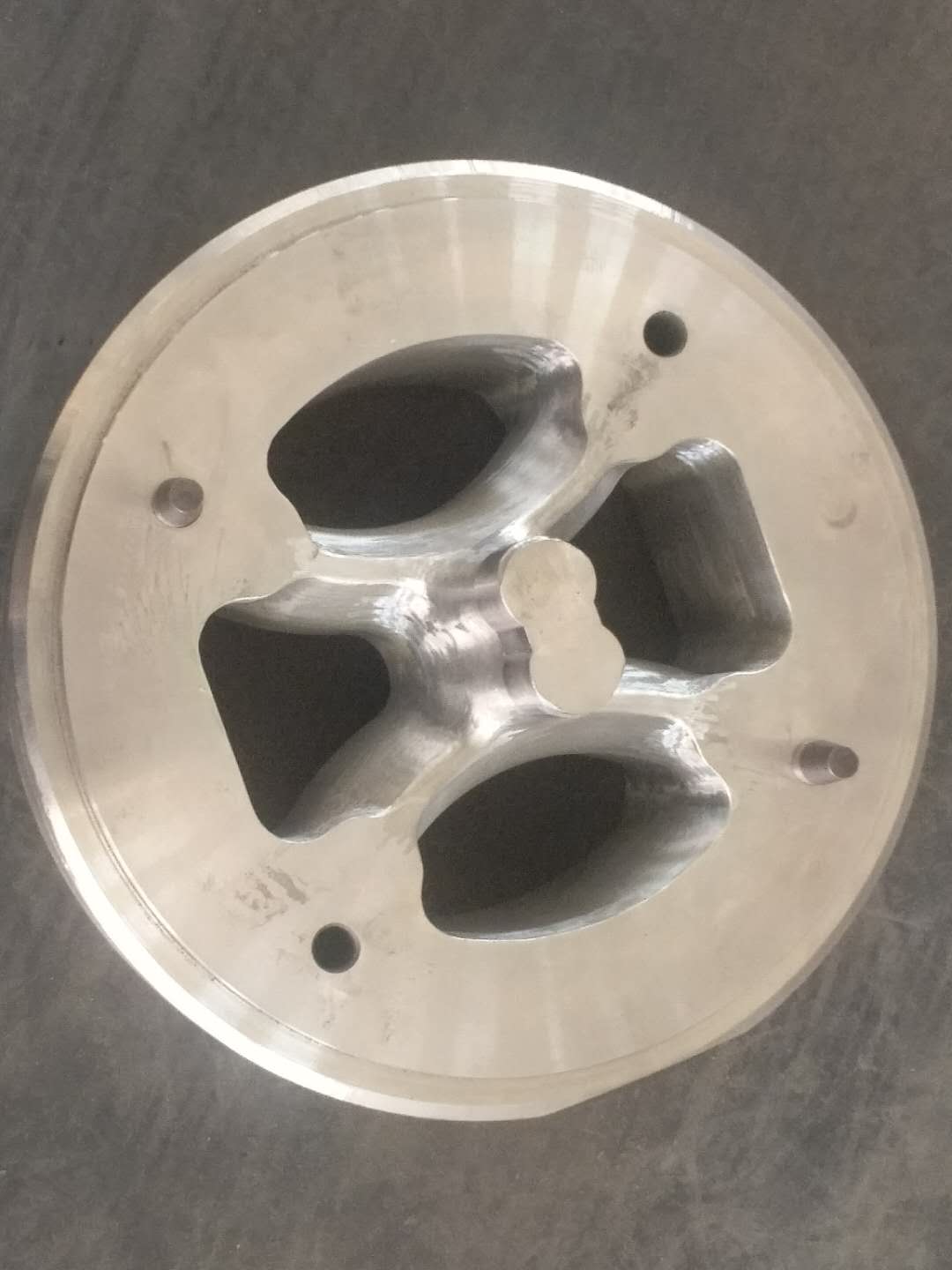

Our aluminum extrusion hollow die is precision engineered for producing complex hollow aluminum profiles. As a professional manufacturer of aluminum extrusion mould, EPS Aluminum supplies high-performance H13 die tooling used by extrusion plants worldwide. Whether you need pipes, window frames, radiators, solar panel frames, or industrial structural components, our custom extrusion tooling ensures tight tolerances and excellent surface finish.
Material: Premium H13 die steel with vacuum heat treatment
Hardness: HRC 48–52 for extended service life
Design: Computer-simulated flow manifold for balanced metal flow
Hollow profiles: Designed specifically for hollow die extrusion applications
Surface treatment: Nitriding or PVD coating available
| Parameter | Value |
|---|---|

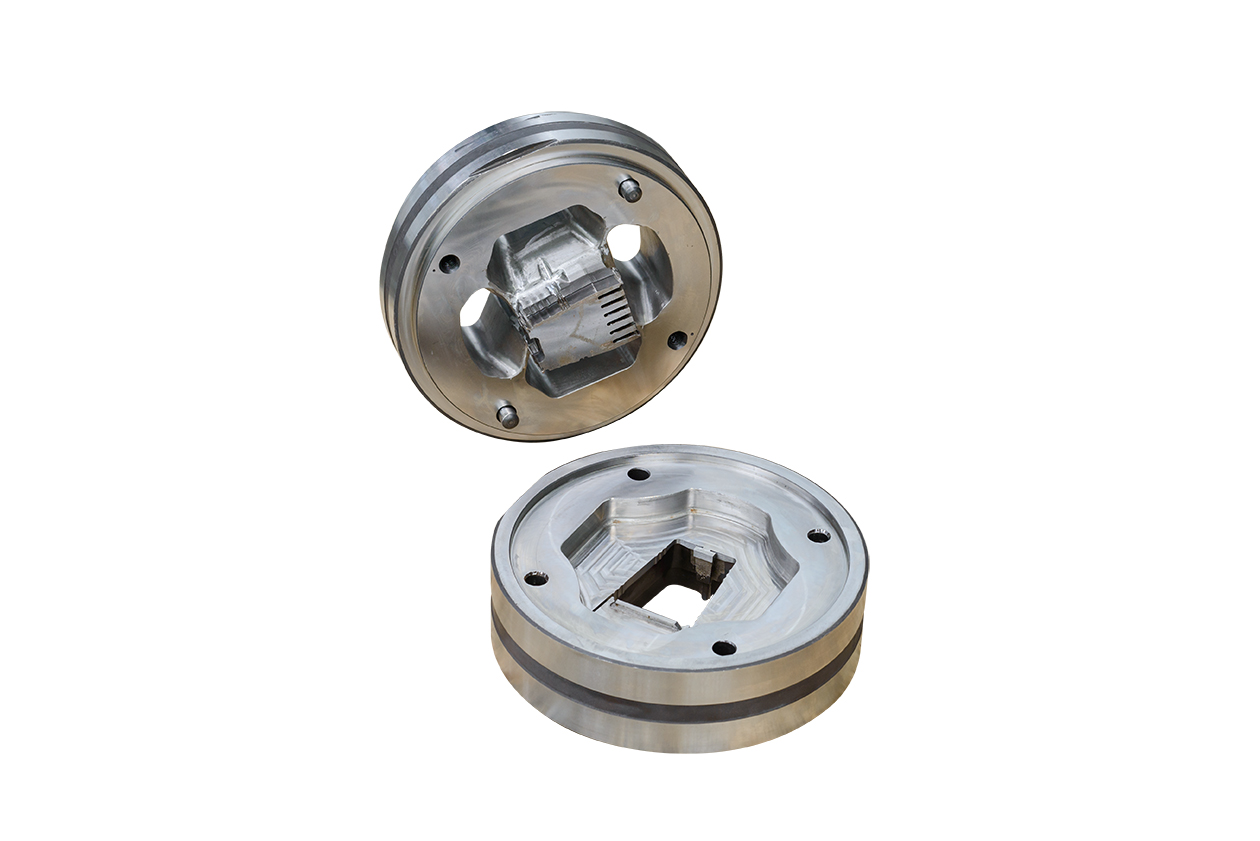

| Die size range | 60 mm – 1000 mm (OD) |
| Steel grade | H13 / 1.2344 / SKD61 |
| Heat treatment | Vacuum + double tempering |
| Delivery time | 15 working days |
| Tolerances | DIN EN 755-9, GB/T 5237, or custom |
Our industrial aluminum profile die supports profile wall thickness from 0.8 mm to 8 mm, with a maximum extrusion ratio up to 80:1.
Architectural aluminum die → window frames, door profiles, curtain walls
Industrial aluminum profile die → automation rails, heat sinks, conveyor beams
Hollow die extrusion for square/round pipes, radiators, solar frames
Lightweight structural components for transportation and electronics
Custom extrusion tooling based on your 2D drawing or 3D model
Fast sampling: Test-before-pay service available
Competitive price without compromising steel quality
One-stop solution: die design, manufacturing, trial run, and profile production
ISO 9001:2015 certified production process
To request a custom extrusion tooling quote for your aluminum extrusion hollow die, please provide:
Profile drawing (DXF/DWG/STP)
Required alloy (6063, 6061, 6082, 7003, etc.)
Estimated annual volume
We will design and manufacture the aluminum extrusion mould / hollow die that perfectly matches your extrusion press (from 500T to 5000T). Contact us today for a free die feasibility analysis.
