Multi-Cavity Aluminum Extrusion Die

EPS offers high-quality custom solid aluminum extrusion dies ideal for producing rods, bars, angles, channels and a variety of complex, non-hollow profiles. Our custom solid dies are meticulously engineered to guarantee superior strength, precise dimensions, and a flawless surface finish. Manufactured from premium H13 material with vacuum heat treatment, each solid extrusion die from EPS is built for durability and longevity. Engineered for efficiency, our custom solid die solutions provide the precision and consistency you need for high-volume production runs.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Multi-Cavity Aluminum Extrusion Die – High-Efficiency Tooling for Mass Production

EPS designs and manufactures multi-cavity aluminum extrusion dies to significantly increase your extrusion output per press stroke. By producing multiple identical profiles simultaneously, our multi‑hole extrusion dies reduce production time, lower energy consumption, and improve overall cost efficiency. Available with up to 20 cavities depending on profile size and press tonnage.

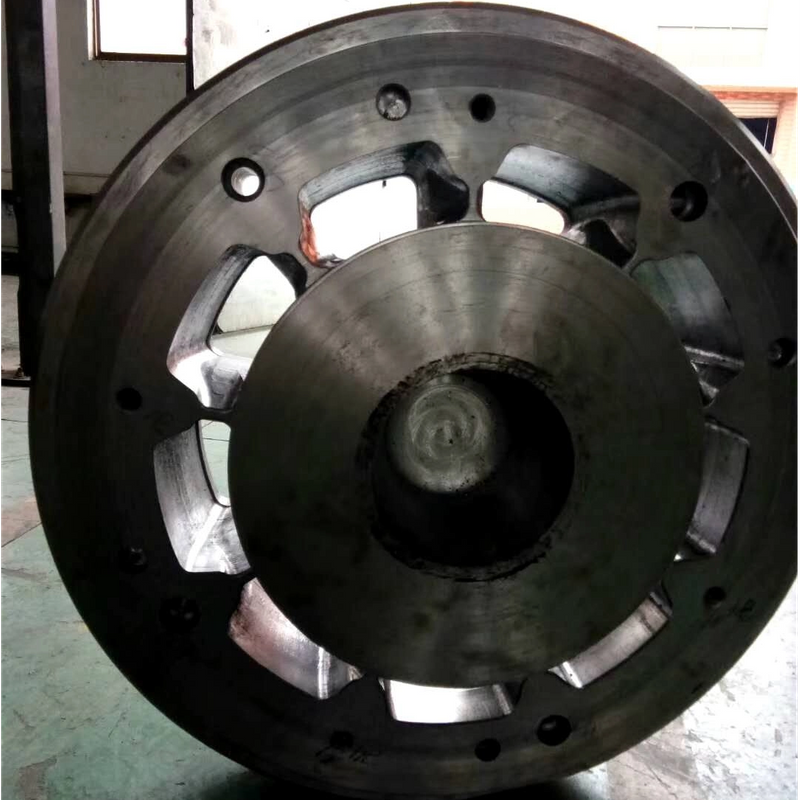

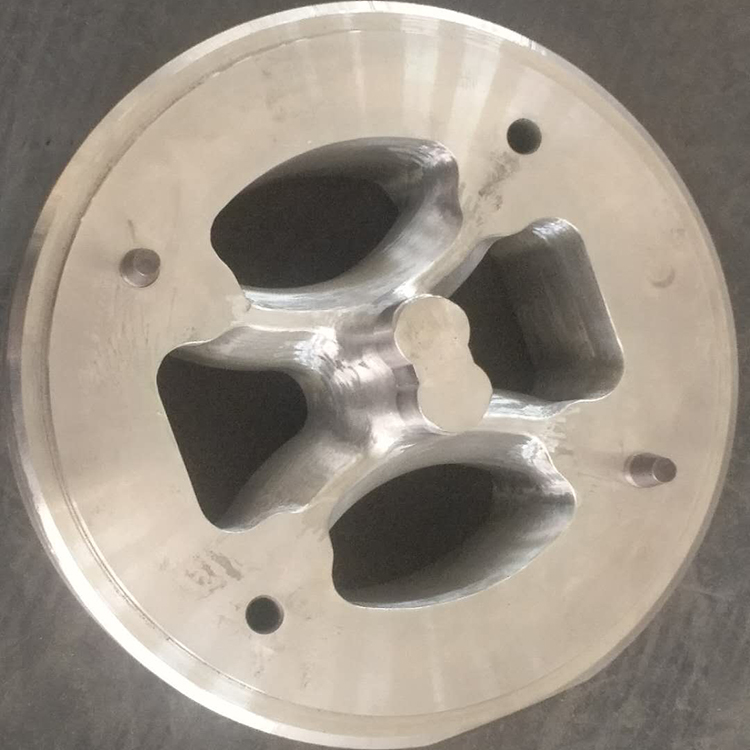

Each multi‑cavity die is machined from premium H13 hot‑work tool steel, vacuum heat treated to HRC 48‑52, with optional nitriding for extended die life. We use advanced CAD/CAM simulation to balance material flow across all cavities, ensuring consistent dimensions and mechanical properties for every extruded profile.

Technical Specifications – Multi-Cavity Aluminum Extrusion Tooling

Die Type	Multi-cavity / Multi-hole extrusion die (2 to 20 cavities)
Material	H13 (AISI H13 / 1.2344), premium grade
Hardness	HRC 48‑52 (vacuum heat treatment)
Optional Treatment	Nitriding (increases wear resistance and die life)
Die Diameter	Up to 1000mm (depending on cavity count)
Minimum Profile Wall Thickness	0.8mm – 1.5mm per cavity

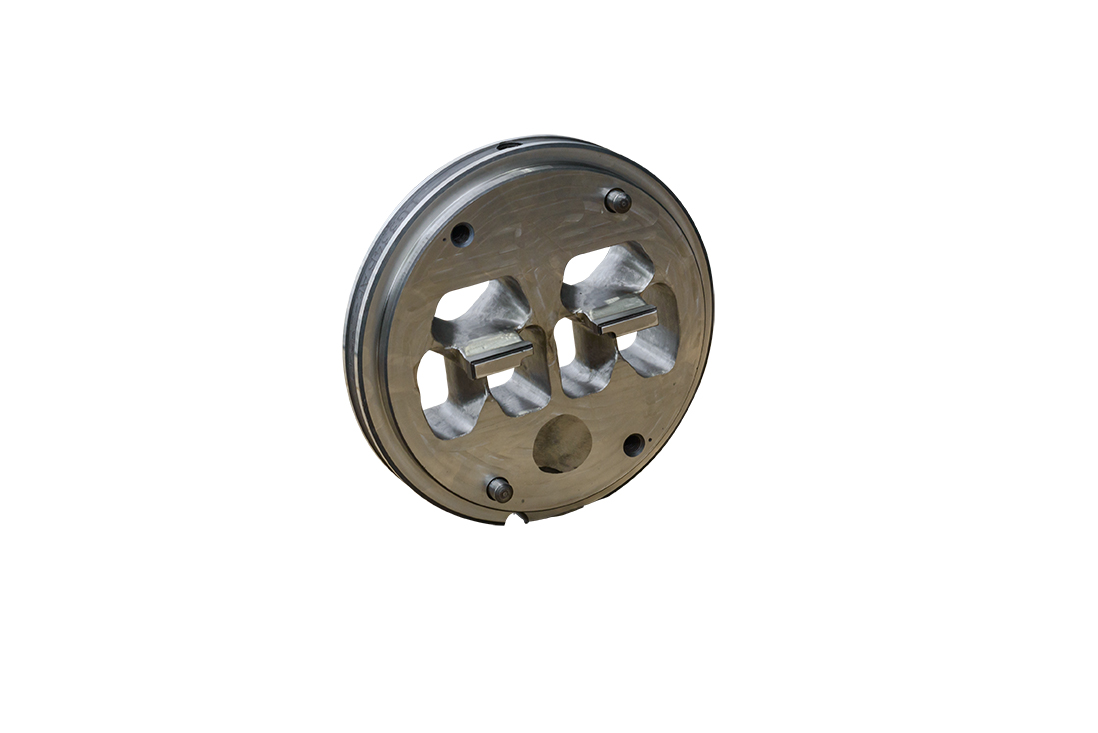

Cavity Arrangement	Linear, circular, or custom pattern
Typical Output per Die	Up to 12 tons (or more, depending on cavity count and profile size)
Lead Time	15 working days (standard); +2 days for nitriding

Why Choose a Multi-Cavity Extrusion Die?

Higher productivity – Produce 2 to 20 profiles per press stroke. Significantly increases output per hour.
Lower per‑unit tooling cost – One die does the work of multiple single‑cavity dies.
Consistent quality across cavities – Our flow simulation ensures even metal distribution, minimizing dimensional variation.
Energy efficient – Extrude more profiles with the same billet heat and press energy.
Custom cavity layouts – We design linear, radial, or staggered patterns to fit your extruder and cooling table.

Multi-Cavity Configurations We Offer

2‑cavity die – Ideal for medium to large profiles (e.g., handrails, curtain wall mullions).
4‑cavity to 6‑cavity die – Common for smaller profiles like heat sinks, LED housings, and trim.
8‑cavity to 12‑cavity die – For very small profiles such as wire channels, spacers, and decorative trims.
Up to 20‑cavity die – Ultra‑high efficiency for miniature profiles (available upon engineering review).

We also produce multi‑port porthole dies for hollow multi‑cavity profiles, combining the benefits of hollow extrusion with multi‑cavity productivity.

Applications of Multi-Cavity Aluminum Extrusion Dies

Our high‑cavity tooling is widely used for mass‑produced aluminum profiles in:

Thermal management: heat sink profiles, LED cooling fins
Building & construction: window frame inserts, partition clips
Electronics: enclosure rails, connector housings
Automotive: trim strips, sealing bead carriers
Industrial: small conveyor components, sensor mounts

Looking to boost your extrusion output with a multi-cavity die? Send us your profile drawing and desired cavity count. We’ll reply within 24 hours with a technical proposal and quotation.
