Aluminium Extrusion Production Line: Precision, Efficiency, and Innovation
Aluminium extrusion is a cornerstone manufacturing process for creating profiles with complex cross-sections used in industries from construction and automotive to aerospace and consumer electronics. A modern aluminium extrusion production line is a sophisticated integration of machinery, control systems, and metallurgical expertise, designed for high efficiency, repeatability, and superior quality. This article delves into the key stages and technological advancements of a professional extrusion line.
The process begins with aluminium alloy billets (logs), typically cast from primary or recycled aluminium. These are first cut to precise lengths using a billet saw. The cut billets are then transferred to a pre-heating furnace (often a walking beam or induction furnace), where they are uniformly heated to a temperature between 450°C and 500°C. This critical step homogenizes the billet's structure, making it soft and plastic enough for deformation while ensuring consistent flow characteristics.
The heated billet is loaded into the extrusion press. Here, a hydraulic ram applies immense pressure (from 1,000 to over 15,000 tonnes), forcing the softened aluminium through a precision-engineered die. The die, crafted from hardened tool steel, defines the profile's exact two-dimensional shape. Modern presses feature:
Programmable Logic Controllers (PLCs) for precise control of pressure, speed, and temperature.
Butt Shear Systems to cleanly separate the extruded profile from the unextruded billet end (butt).
Upon exiting the die, the profile enters the quenching system. For heat-treatable alloys (e.g., 6000-series), this involves rapid cooling using air (fan walls), water mist, or a combination. This "quench" locks the alloying elements in solution, a prerequisite for subsequent age hardening and achieving the required mechanical properties.

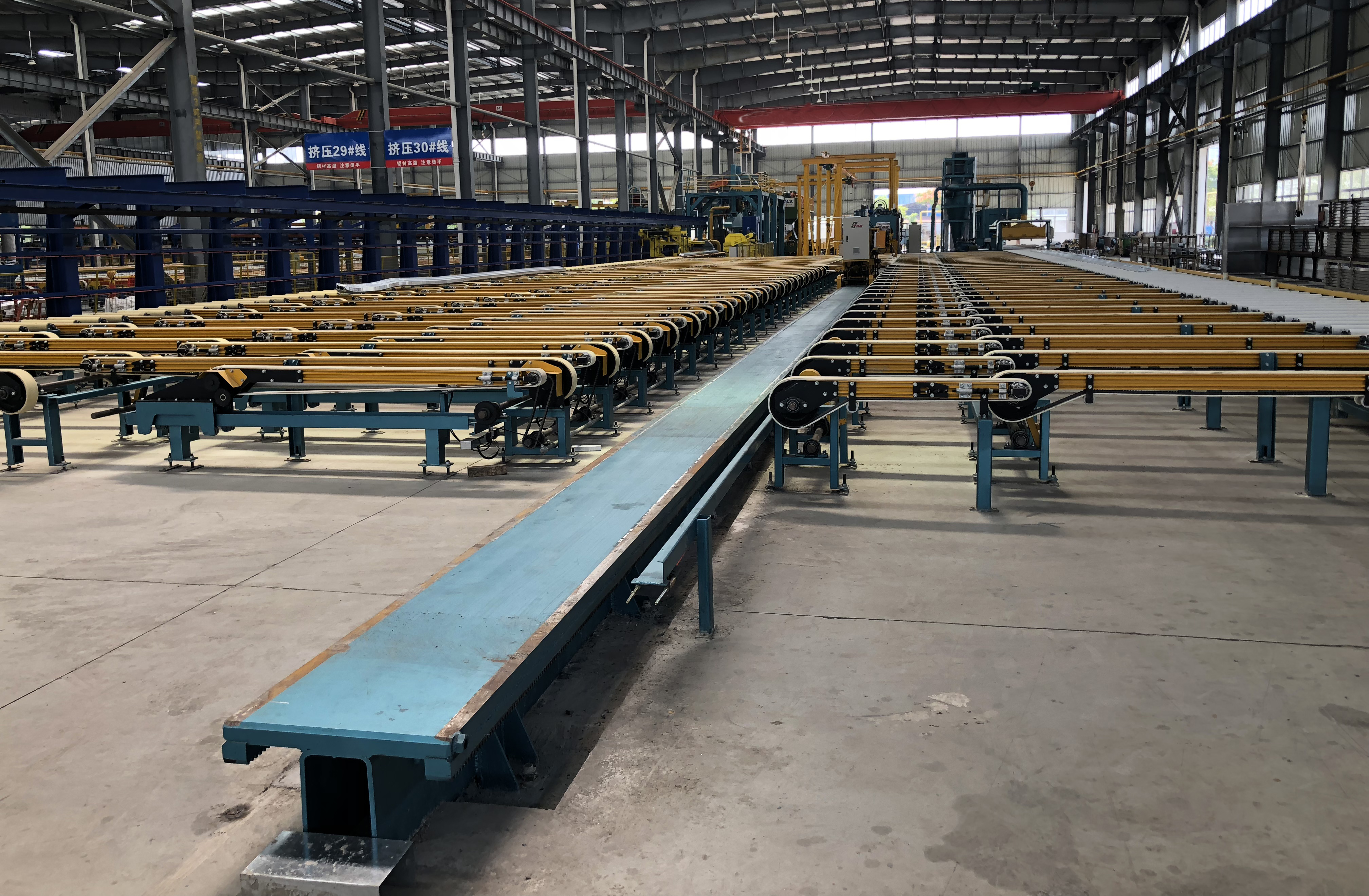

The still-hot profile moves to the run-out table and is then transferred to a stretcher. Stretching (1-3% elongation) removes internal stresses and minor distortions, ensuring dimensional stability and straightness. A profile straightener may provide final corrective alignment. Next, an automated flying saw or dual-cut saw cuts the continuous profile to specified commercial lengths based on a pre-set program.
For T5 or T6 tempers, cut profiles are racked and transferred to an aging oven. Here, they are heated to a specific temperature (typically 170°C-200°C) for a set duration (several hours). This controlled precipitation hardening process develops the profile's final strength, hardness, and toughness.
Profiles then proceed to downstream operations, which may include:
Surface Treatment: Automated anodizing lines for decorative or protective oxide layers, or powder coating lines for durable, colored finishes.
Fabrication: CNC machining centers, punching stations, and welding cells for adding holes, slots, or assembling components.
Quality Inspection: In-line systems using laser gauges, optical comparators, and manual checks for dimensional accuracy, surface defects, and mechanical properties.
Automation & Industry 4.0: Integration of robotics for billet handling, profile transfer, and packing. IoT sensors collect real-time data (temperature, pressure, speed) for predictive maintenance and process optimization.
Energy Efficiency: Advanced induction heating, heat recovery systems from presses and ovens, and servo-hydraulic drives significantly reduce the carbon footprint.
Die Technology: Simulation software (e.g., HyperXtrude, QForm) for virtual die trials, and advanced die materials/coratings to extend service life and improve metal flow.
In-line Quality Control: Automated optical inspection (AOI) systems using AI and machine vision to detect surface and dimensional flaws with high accuracy.
