How to Improve Aluminum Extrusion Die Productivity: A Comprehensive Technical Guide

The aluminum extrusion industry is facing unprecedented pressure to increase productivity while maintaining stringent quality standards. As global demand for extruded aluminum profiles continues to rise across automotive, aerospace, construction, and consumer electronics sectors, manufacturers are seeking effective strategies to enhance output per die. The extrusion die — the heart of the aluminum extrusion process — directly determines product quality, production efficiency, and overall manufacturing costs.

This comprehensive guide explores proven methodologies to maximize aluminum extrusion die productivity, from fundamental design principles to advanced surface engineering and Industry 4.0 integration.

1. Advanced Die Design Optimization

1.1 Bearing Geometry Optimization

The bearing length is a critical parameter that governs metal flow uniformity and extrusion speed. Research has demonstrated that longer die bearings allow more heat to dissipate from the extrudate to the die, leading to greater dimensional accuracy. However, the extrusion throughput is primarily limited by extrudate temperature rather than extrusion pressure.

Modern design approaches have evolved beyond traditional empirical methods. A balanced exit velocity can be achieved by combining variable sink-in with bearing geometry adjustments, resulting in more stable and predictable flow balancing behaviour compared to designs relying solely on parallel bearing length variations.

Key bearing design considerations include:

• Variable bearing lengths to compensate for section thickness variations

• Pocket and feeder plate configurations to equalize metal flow

• Choking techniques to prevent localized overheating

1.2 Porthole and Feeder Die Optimization

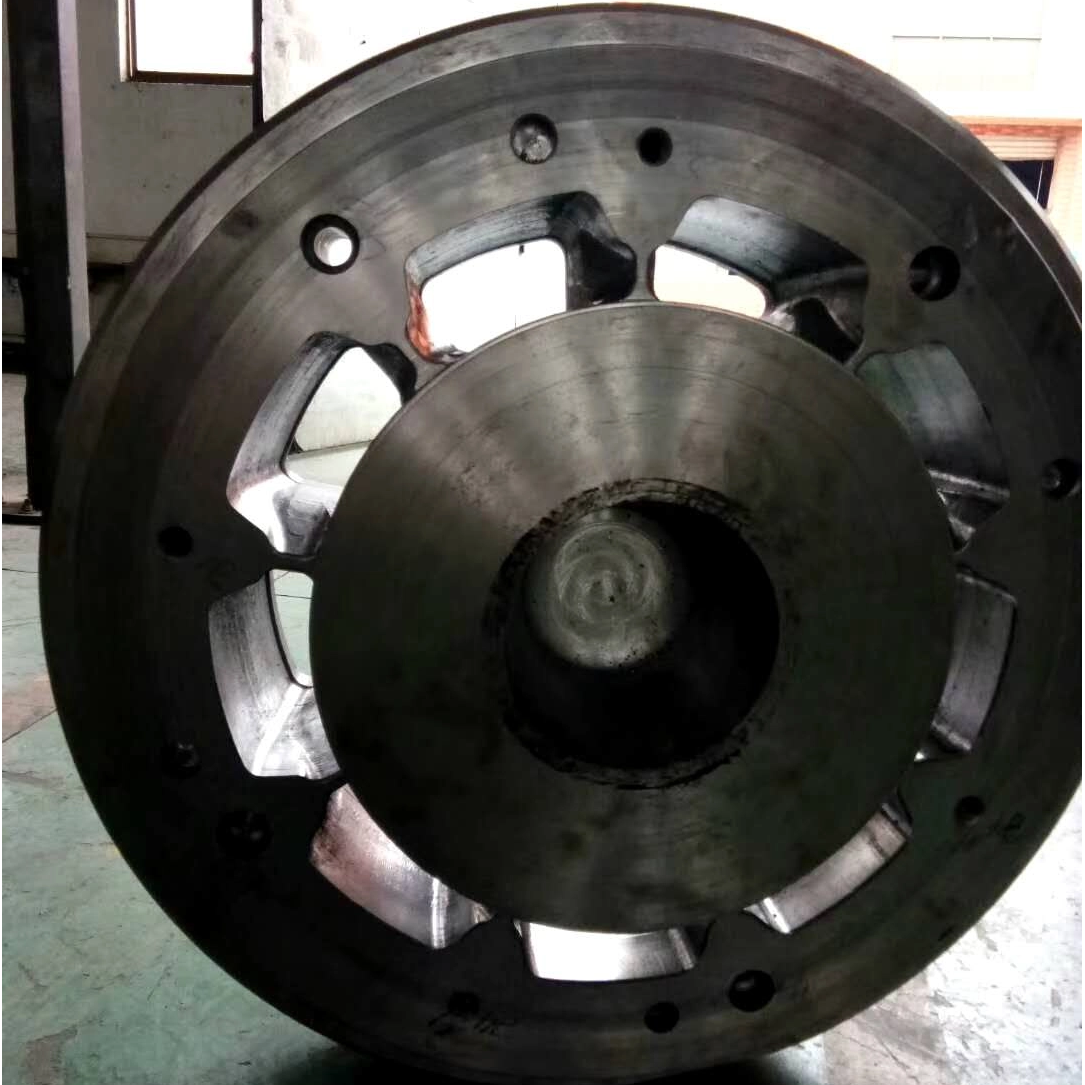

For hollow and multi-chamber profiles, optimizing porthole size, mandrel geometry, and welding chamber design is essential. Studies have shown that resizing portholes, adding bosses, chamfering mandrels, and adjusting bearing lengths can effectively balance local metal flow velocity. This balanced flow directly translates to higher achievable extrusion speeds and reduced scrap rates.

1.3 Simulation-Driven Design

Finite Element Analysis (FEA) has revolutionized extrusion die design. Three-dimensional FEA simulation enables precise prediction of extrudate temperature, extrusion pressure, and metal flow patterns before physical manufacturing. This eliminates costly trial-and-error iterations and accelerates die development cycles.

For high-strength aluminum alloys such as AA7075, which present extraordinary demands due to low-temperature incipient melting and high deformation resistance, simulation-based optimization is particularly critical.

2. Surface Coating Technologies

2.1 Conventional Nitriding

Extrusion dies made from hot work tool steels such as AISI H13 are almost universally surface-treated by various forms of nitriding to reduce wear. Advanced controlled nitriding systems, such as Nitreg® technology, provide precise control over uniform case depths and nitride layer formation, enhancing the mechanical properties of extrusion dies and resulting in longer service life and increased output per die.

2.2 PVD Coatings and Duplex Treatments

Physical Vapor Deposition (PVD) coatings represent a significant advancement in die surface engineering. TiAlN coatings have been demonstrated to extend die life to 150–200 tons, compared to traditional nitriding which achieves 80–120 tons.

Duplex coating — combining plasma nitriding with subsequent PVD coating such as CrN or TiAlN — has been estimated to prolong tool life at least five times compared to conventional nitriding alone. The superficial PVD layer provides a combination of high resistance to mechanical wear and resistance to corrosive attack by hot aluminum, while the nitrided substrate maintains toughness and thermal stability.

Field results: PVD CrN duplex treatment has been shown to significantly reduce total production costs for extrusion die operations, while TiAlN demonstrated the highest wear resistance among tested coatings.

3. High-Performance Die Materials

3.1 Premium H13 and Enhanced Grades

While AISI H13 remains the industry standard for aluminum extrusion dies, premium grades offer substantial performance improvements. DAC-P, modified from H13, provides enhanced balance of strength, toughness, and heat resistance. DAC-S offers 60% higher toughness than standard DAC, significantly extending die life in demanding applications.

3.2 Hybrid Material Approaches

Expert guidance suggests combining materials — using H13 steel as the base with carbide inserts in high-wear areas — to balance cost, durability, and precision for demanding extrusion tasks.

3.3 Heat Treatment Optimization

Vacuum heat treatment to achieve optimal hardness (HRC 48–52) and toughness is essential for maximizing die performance. Proper heat treatment enhances thermal stability, wear resistance, and fatigue life.

4. Thermal Management Strategies

4.1 Die Cooling Systems

The single most effective way to reduce exit temperature and increase extrusion speed is die cooling. Liquid nitrogen cooling has proven highly effective, with research showing that die cooling systems using nitrogen gas injection during hot aluminum extrusion deliver significant improvements in both productivity and extrudate quality.

Key parameters for nitrogen cooling optimization include:

• Number and position of inlets and outlets

• Nitrogen channel shape and dimensions

• Cooling efficiency versus gas consumption balance

Numerical models now enable simulation of nitrogen-cooled extrusion processes, integrating simplified 1D channel models into 3D FE models to optimize cooling channel design before industrial implementation.

4.2 Conformal Cooling Channels

Additive manufacturing has enabled a breakthrough in die cooling technology. 3D-printed dies with conformal cooling channels — internal cooling paths that follow the die contour — can reduce thermal distortion by up to 40%. This technology allows cooling channels to be placed precisely where heat is generated, overcoming the limitations of conventional drilled cooling channels.

4.3 Billet Temperature Optimization

Extrusion productivity is directly linked to extrusion velocity, which is limited by the exit temperature of the formed profile. A controlled reduction of billet temperature allows increased extrusion velocity while keeping outlet temperature, stresses, and pressure within admissible ranges.

Isothermal extrusion — maintaining constant exit temperature throughout the extrusion cycle — enables presses to operate at optimal speeds without temperature-induced variations. Billet quench systems that apply controlled cooling gradients along the billet before extrusion have been shown to increase press speeds by 10–20% while reducing scrap rates by 2–5%.

5. Industry 4.0 and Predictive Maintenance

5.1 Smart Die Monitoring

The integration of IoT sensors and predictive analytics has transformed die maintenance strategies. Connected systems featuring vibration sensors that detect die wear with 95% accuracy, combined with thermal cameras monitoring billet temperature within ±3°C, enable real-time condition monitoring.

5.2 Predictive Maintenance

Machine learning models can now anticipate die wear, press component fatigue, and lubrication needs before failure occurs. Predictive maintenance systems have been shown to reduce downtime by up to 35% while optimizing energy consumption to 800–850 kWh/ton.

Systems such as EXTRUSION MASTER perform predictive maintenance analysis and recommend optimal timing for die exchange, transforming inspection and process data into cost-saving decisions.

5.3 AI-Driven Process Optimization

AI systems analyzing historical extrusion data — temperature, pressure, pull speed — can forecast defect likelihood in real time and continuously tune process parameters for optimal throughput while maintaining mechanical tolerances. This adaptive optimization represents the future of extrusion manufacturing, moving from reactive correction to predictive precision.

6. Scrap Reduction and Yield Optimization

Product yield is a critical metric for extrusion die productivity. A 2025 industry case study demonstrated that optimizing die durability and process parameters, combined with rare earth element additions, achieved a 10% product yield improvement over competitors.

Scrap reduction strategies include:

• Minimizing transverse weld length through optimized die geometry and process settings

• Profiled billet extrusion technology for significant scrap reduction

• Enhanced dimensional control through improved die design

Conclusion

Improving aluminum extrusion die productivity requires a holistic approach that integrates multiple strategies:

By implementing these proven methodologies, aluminum extruders can achieve higher output per die, reduced tooling costs, improved product quality, and enhanced overall competitiveness in the global market.
