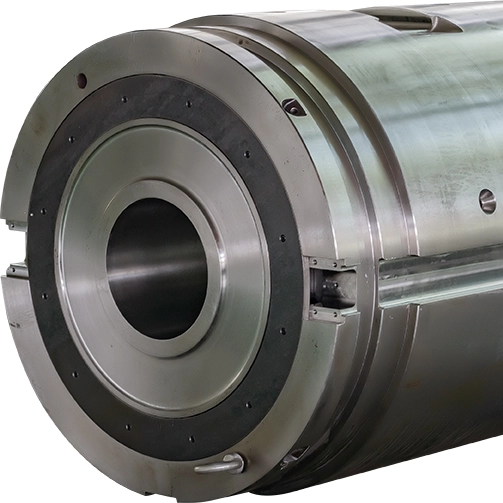

The container liner stands as one of the most critical and capital-intensive consumables in an aluminum extrusion press. Serving as the inner sleeve of the container assembly, it defines the chamber where heated billets are compressed and forced through the die under extreme conditions—pressures exceeding 10,000 psi (700 bar) and temperatures reaching 450–500 °C. Within this punishing environment, the liner endures a synergistic combination of mechanical stress, thermal shock, abrasive wear, and creep deformation.
The economic impact is direct and substantial:
A well-managed liner can deliver 8,000 to 15,000+ extrusion cycles.
A neglected liner risks premature failure, leading to unplanned downtime, profile dimensional deviations, and significant replacement costs.
As a primary wear component, the liner’s condition dictates product quality, dimensional consistency, and overall press profitability.
This technical guide provides a rigorous framework for extending container liner service life, covering material science, failure mechanisms, preventive maintenance, surface engineering, refurbishment strategies, and operational best practices.
To extend liner life, one must first understand the principal—and interacting—modes of degradation:
Creep Deformation
Sustained high temperatures and compressive stresses cause time-dependent plastic flow. Maximum creep strain occurs at the bottom of the inner surface where billet contact duration is longest. Over cycles, this results in shrinkage loss—reduction of the interference fit between liner and outer container—which diminishes prestress, elevates liner stress, and promotes cracking.
Thermal-Mechanical Fatigue
Cyclic heating (billet contact) and cooling (between cycles) generate multiaxial thermal stresses. Modeling confirms that failure at elevated temperatures is governed by creep-fatigue interaction: a time-dependent, deformation-path-driven damage accumulation.
Abrasive Wear
High-velocity aluminum flow, combined with oxide scale and hard intermetallic particles, progressively erodes the bore surface. This enlarges diameter beyond tolerance and introduces longitudinal scoring that degrades extrusion quality.
Adhesive Wear & Aluminum Build-Up
Under high pressure and temperature, inadequate lubrication leads to aluminum bonding (galling). This build-up raises friction, creates profile surface defects, and accelerates further degradation.
Shrink-Fit Deterioration
Interference fit is essential for maintaining compressive prestress to counteract tensile hoop stresses during extrusion. Progressive creep on mating surfaces reduces preload and can induce axial endplay, compromising the entire container assembly’s structural integrity.
Longevity begins with material quality, processing, and heat treatment.
H13 (AISI) / DIN 1.2344 remains the industry benchmark for its hot hardness (~50 HRC at 500 °C) and thermal fatigue resistance. Performance depends on more than chemistry:
Cleanliness: Specify vacuum-degassed or electroslag remelted (ESR) steel to minimize inclusion-initiated cracks.
Homogeneity: Uniform microstructure ensures consistent properties.
Grain Structure: Fine, equiaxed grains enhance strength and toughness.
Forging Ratio: Sufficient hot work eliminates porosity and refines grains.
For demanding alloys or extended runs, consider advanced 5% Cr-class steels or specialized high-speed steels.
Critical for durability:
Oil quenching + triple tempering to achieve HRC 48–52 on the inner surface.
Outer container body: HRC 38–42 with tightly controlled temperatures.
Repeat after any re-boring or major refurbishment to restore near-surface properties.
Nitriding: Gas or plasma nitriding produces a hard case (1,000–1,200 HV) with a tough core. Target: ≥800 HV surface hardness, ≥200 μm case depth, ≤15 μm compound layer. Plasma nitriding offers superior uniformity, reduced brittleness, and less distortion.
Duplex Coatings: Combine plasma nitriding with PVD coatings (CrN, TiAlN, TiN). Proven to reduce friction by 30–40% vs. aluminum and extend life significantly over nitriding alone.
Bimetallic Liners: Integrate a wear-resistant inner layer (e.g., Stellite 6) metallurgically bonded to a high-strength steel substrate for exceptional sliding performance plus structural integrity.
A disciplined, scheduled program is the highest-return investment.
Action Item | Best Practice Standard |
|---|---|
Press Alignment | Stem–container–die stack misalignment ≤ ±0.5 mm; use laser trackers for precision. |
Thermocouple Check | Verify calibration weekly; faulty sensors cause overheating and accelerated creep. |
Keyway Inspection | Examine radii for cracks each removal; machine/grind to arrest propagation. |
Hardness Monitoring | Check container body hardness at each new liner install; softening reduces shrink-fit capability. |
Re-Bore Strategy | Re-machine container bore with every liner replacement to restore precise interference fit. |
Movement Check | Investigate immediately if relative motion exists between container and holder. |
Face Inspection | Clean/deburr nicks, scores, or build-up on container faces to ensure die-sealing integrity. |
Cool-Down Protocol | Avoid thermal shock; implement gradual, controlled cooling—never water-quench hot containers. |
Temperature Management | Operate at the minimum consistent temperature for acceptable extrusion; excess heat accelerates creep and wear. |
Shift from reactive to predictive replacement via condition monitoring.
Method | Key Metrics & Thresholds |
|---|---|
Ultrasonic Testing | Detect subsurface cracks and defects before critical propagation. |
Dimensional Metrology | Replace when: bore diametral difference (working vs. non-working) > 0.4 mm, or longitudinal scoring > 5 mm deep. |
Surface Assessment | Act on visible scoring, aluminum adhesion, or surface degradation. |
Hardness Testing | Periodic checks detect thermal softening; declining values signal need for re-nitriding or replacement. |
Product Indicators | Surface peeling/bubbles on extrusions warrant immediate liner inspection. |
Salvage value before complete retirement.
Grinding + Re-Nitriding: Precision-grind to remove damage, then re-nitride. Recovers ~90% of original specs at lower cost.
Laser Cladding: High-precision deposition of wear-resistant alloys with minimal heat input. Offers 2–3× longer life vs. conventional repair, superior bond strength, and tailored alloy options.
Oversize Re-Boring: For uniform wear, bore to next oversize and pair with larger dummy block to maximize utilization.
Daily discipline protects liner integrity.
Use boron nitride-based lubricants for high-temperature stability and anti-adhesion.
Apply graphite-based dry films to reduce friction and prevent adhesive wear.
Ensure uniform application per supplier specs—avoid both under-lubrication (galling) and over-lubrication (blistering).
Clean surfaces minimize abrasive oxides/intermetallics.
Taper heating optimizes flow and reduces peak pressures.
Evaluate scalping for critical applications to remove high-oxygen skin.
Maintain stable container temperature during runs.
Minimize idle cooldowns to reduce thermal cycling.
Monitor circumferential uniformity to prevent asymmetric expansion/distortion.
Too tight → excessive friction/scoring.
Too loose → back extrusion, metal build-up, high drawback loads.
Verify clearance regularly as part of routine maintenance.
Maximizing liner service life demands a systematic, multi-domain approach:
Start with Quality: Premium materials and exact heat treatment set the baseline.
Enhance Surfaces: Nitriding and duplex coatings protect the critical interface.
Maintain Rigorously: Documented inspections, metrology, and proactive scheduling.
Monitor Continuously: Combine quantitative data with qualitative extrusion quality signals.
Operate Wisely: Optimize temperatures, lubrication, billets, and alignment.
Refurbish Strategically: Leverage grinding, cladding, and boring to maximize asset utilization.
The container liner is not a simple consumable—it is a high-value asset whose performance reflects the entirety of press management. By implementing these practices, extrusion operations achieve:
Extended liner life
Reduced unplanned downtime
Lower tooling costs
Improved product quality
All contribute directly to higher profitability and competitive advantage.
