In the rapidly evolving world of aluminium profile manufacturing, one size no longer fits all. From automotive lightweight structures and architectural curtain walls to heat sinks for electronics and high‑strength industrial frames, the demand for complex, tight‑tolerance aluminium profiles is growing exponentially. To meet these diverse challenges, a customized aluminium extrusion production line has become the cornerstone of competitive and reliable profile production – offering not just standard shapes, but fully tailored solutions that optimize throughput, minimize scrap, and ensure consistent metallurgical and dimensional quality.
Standard extrusion lines are designed for average requirements. However, real‑world applications often demand specific alloys (6063, 6061, 6005, 6082, 7000 series), unique profile geometries (hollow, semi‑hollow, solid with micro‑fins), and production scenarios ranging from high‑mix/low‑volume to dedicated high‑volume runs. A customized line is engineered around your exact:
Profile complexity & size range – from micro‑profiles (<10 mm) to large industrial sections (>400 mm)
Alloy characteristics – higher strength alloys require greater press force and specific thermal management
Production capacity – daily output targets, shift patterns, and automation level
Downstream integration – in‑line heat treatment, anodizing preparation, or direct packing
By tailoring each major component – from log heating and extrusion press to cooling table, handling system, and ageing furnace – manufacturers achieve higher yield, lower energy consumption, and significantly reduced changeover time.
A complete extrusion line integrates several key stations. In a custom solution, every element can be scaled, re‑configured, or enhanced.
The process begins with pre‑heating aluminium logs to the optimal extrusion temperature (typically 400–500°C). Customization options include:
Heating technology – fast‑response induction (ideal for 6000 series alloys) vs. energy‑efficient gas furnaces
Length and diameter adaptation – for logs up to 12 m and diameters from 80 mm to 400 mm
Hot shear system – precise billet length control to reduce residual scrap by up to 30%
The press capacity (from 500 US tons to over 5,000 US tons) is selected and often structurally modified based on profile requirements. Custom features include:
Direct or indirect pressing – indirect pressing reduces friction, ideal for high‑strength or difficult‑to‑extrude alloys
Adaptable container size – interchangeable liners for different billet diameters
PLC‑controlled speed and pressure curves – ensures constant exit temperature even for complex solid‑hollow transitions
Double or single cylinder design – affects pressing speed stability and energy efficiency

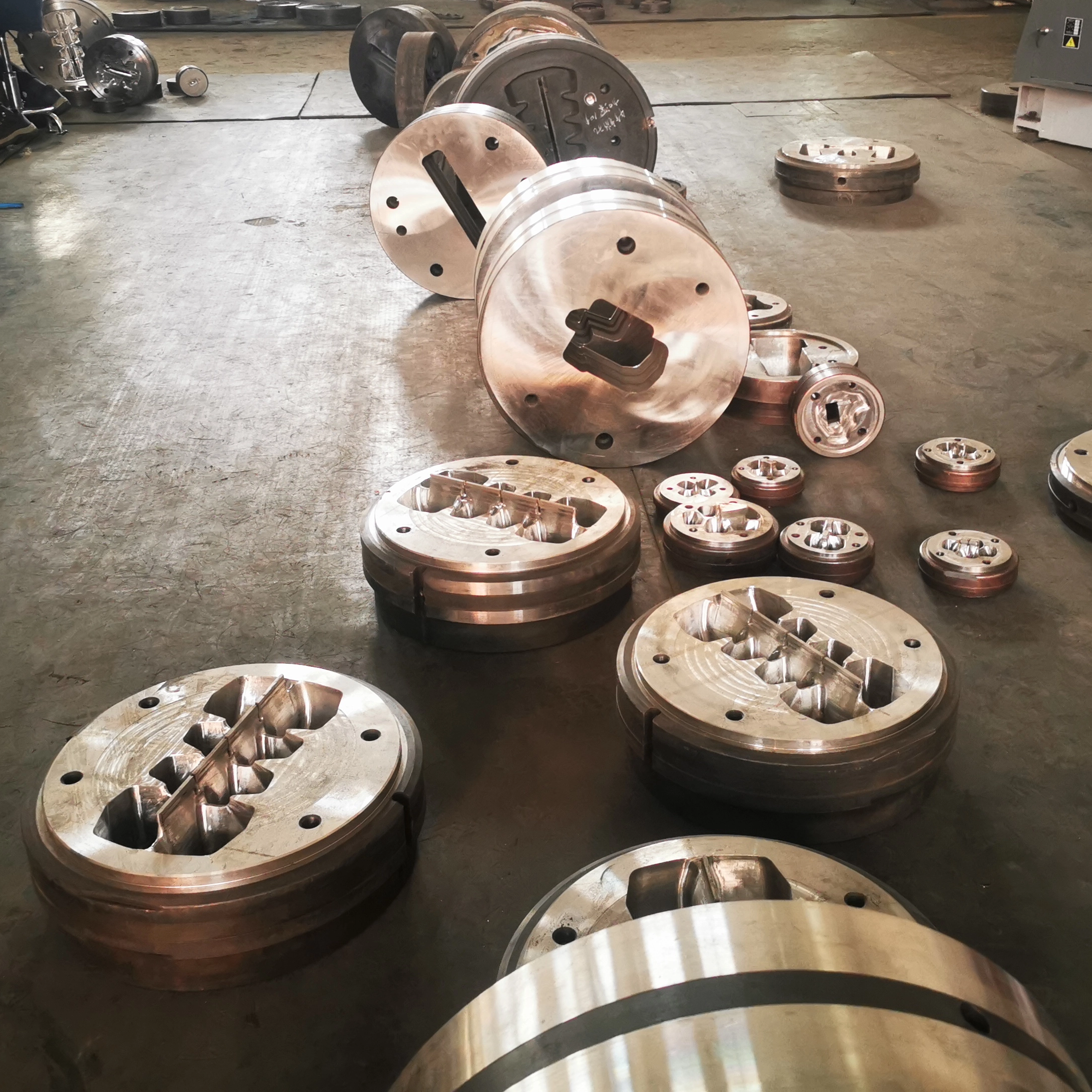

For custom lines serving diversified profiles, die handling becomes critical. Solutions include:
Automated die pre‑heating ovens (up to 500°C)
Hydraulic or robotic die changers reducing downtime to <5 minutes
Die‑management software integrated with production scheduling
Quenching preserves the mechanical properties of the alloy. Customized systems match cooling rate to profile thickness and alloy sensitivity:
Water spray / immersion – for maximum cooling (e.g., 6061, 6082)
Mist / air‑assisted – for thin‑walled profiles to avoid distortion
Adjustable length and nozzle pattern – adapting to profile symmetry and exit speed
Controlled handling prevents twist, bending, and surface damage:
Dual or triple belt puller – synchronized with press exit speed, ensures straightness from the very start
Length optimization saw – flying cut‑off saw with servo‑driven measuring wheel
Stretcher (or straightener) – typically 0.5–1.5% permanent elongation to relieve internal stresses. Custom jaw designs accommodate delicate or large profiles.

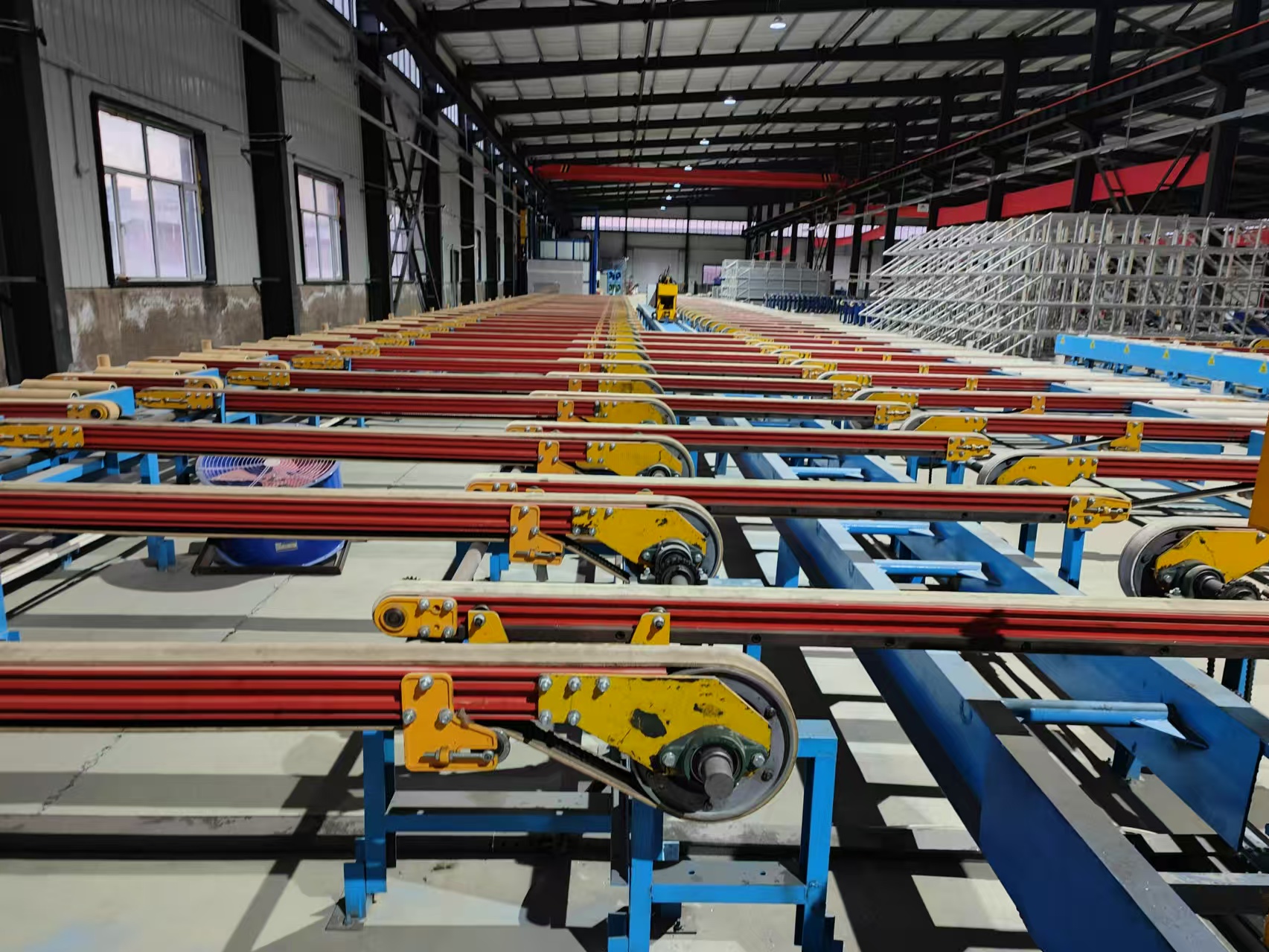

After stretching, profiles are transferred to a cooling conveyor (often fan‑forced) and then stacked. Customization focuses on:
Automatic stacking patterns – layer separation with paper/plastic interleaving
Profile‑specific supports – reducing gravity sag for long or thin sections
Integration with packaging line – banding, wrapping, and labelling
To reach T5 or T6 temper, profiles undergo artificial ageing at 180–200°C for several hours. Custom lines can include:
Batch or continuous furnaces – continuous designs for high‑volume single profiles
Uniform air circulation – temperature uniformity ±3°C
Energy recovery – using exhaust heat for billet pre‑heating
A truly customized line is defined by its software. Modern systems feature:
Recipe‑based set‑up – store parameters (press speed, quench intensity, puller tension) for hundreds of dies
Real‑time closed‑loop control – adjusts press speed to maintain exit temperature, preventing surface defects
Remote monitoring & predictive maintenance – reduces unplanned downtime by 15‑25%
High‑strength 6000 or 7000 series alloys → larger press (3,000+ tons), robust stretcher, water quenching
Tight twist and straightness requirements → dual puller with active roller table
High volume → fully automated die changer & stacker
Slow, stable extrusion speed → fine‑tuned press control and vibration‑damped runout
Gentle handling → soft grippers and minimal roller spacing to avoid fin damage
Air or minimal mist quenching – prevents fin curling
Surface protection → felt‑lined runout tables, oil‑free handling
Consistent grain structure → precise billet heating and uniform quenching
Long profiles (up to 7 m) → extended cooling table and multi‑head saw
Higher overall equipment effectiveness (OEE) – reduced changeover time and fewer rejects
Lower production cost per kg – energy savings, scrap reduction (as low as 5–8% vs. 15% in generic lines)
Faster time‑to‑market – die trials are shorter with dedicated parameter tuning
Future‑proof scalability – designed with spare capacities for automation upgrades or added stations (e.g., in‑line stretching, aging)
A professional supplier of customized extrusion lines doesn’t just deliver hardware. They provide:
Process consulting – from alloy flow simulation to die design review
Installation & commissioning – including operator training (typically 4‑6 weeks on‑site)
Local spare parts warehouse – critical wear parts (container liners, shearing blades, puller belts)
Remote diagnostics – via IoT gateway for continuous improvement
Investing in a customized aluminium extrusion production line is a strategic decision for any profile manufacturer seeking to differentiate through quality, efficiency, and the ability to handle complex orders. Off‑the‑shelf solutions may lower the initial investment, but they often impose hidden costs – higher scrap, slower speeds, and limited product range. By contrast, a line designed around your target profiles and alloys delivers measurable ROI within the first 18‑24 months.
Whether you are expanding an existing facility or building a greenfield plant, a tailored extrusion line transforms aluminium profile production from a commodity operation into a high‑precision, profitable capability.
Interested in exploring a custom solution for your aluminium profile production? Contact our engineering team to discuss your profile portfolio, target alloys, and capacity requirements. We provide end‑to‑end lines – from log heating to aged profiles – fully integrated and tested.
